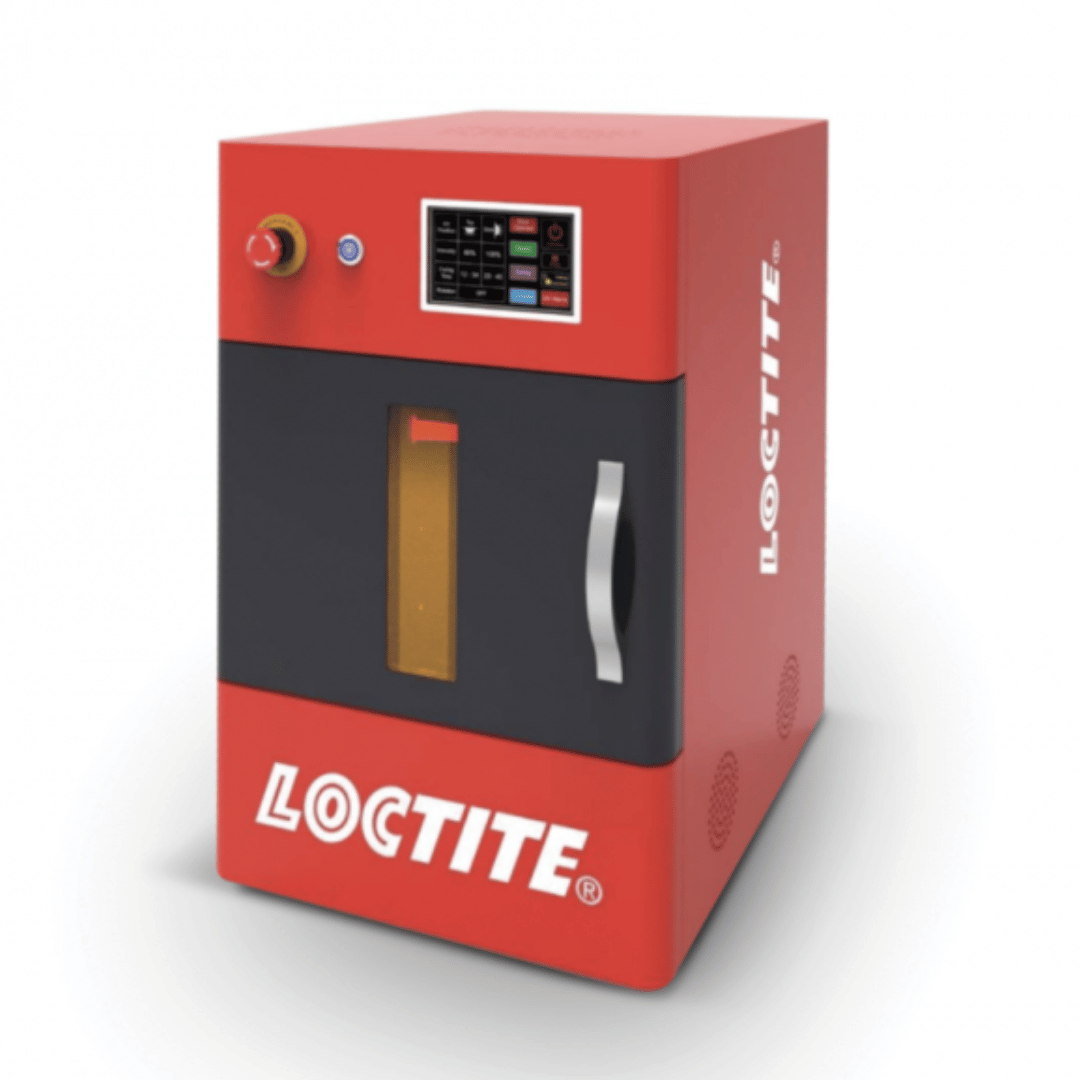

Loctite CL36 Curing Chamber

The LOCTITE® EQ CL36 LED Curing Chamber is a top-tier UV curing station tailored for 3D parts made from Loctite resins. With 405 nm UV light from multi-directional LEDs and a rotating turntable, it guarantees deep curing. This enclosed system offers manual part loading and an intuitive touch screen interface.[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column width=”1/2″][vc_column_text]

Key Benefits

• Variable Intensity: Adjustable from 10-100% for optimal resin curing.
• LED Flood Lights: Dual 200mm x 200mm lights with instant on/off and no infrared emissions.
• Rotary Table: Supports up to 2kg
• Touch Interface: User-friendly colour display for streamlined settings.
• Cure Area: Fits parts up to 300mm x 300mm x 255mm
• LED Lifespan: Lasts around 20,000 hours.
• Timers: Customizable for each LED flood, optimizing cure based on resin
• Consistent Output: Uniform LED intensity for consistent part quality.

[/vc_column_text][/vc_column][vc_column width=”1/2″][vc_column_text]

Technical Specifications

• Overall Dimensions:471 x 372 x 573 (mm)
• Cure Chamber Dimensions:304 x 300 x 255 (mm)
• Weight: 110lbs / 50kg
• Power Supply: 110-240VAC 50/60Hz
• LED Wavelength: 405nm
• Maximum Intensity: 205mW/cm2 @40mm WD
• Recommended Operating Temperature: +10 °C to +40 °C (+50 °F to +104 °F)
