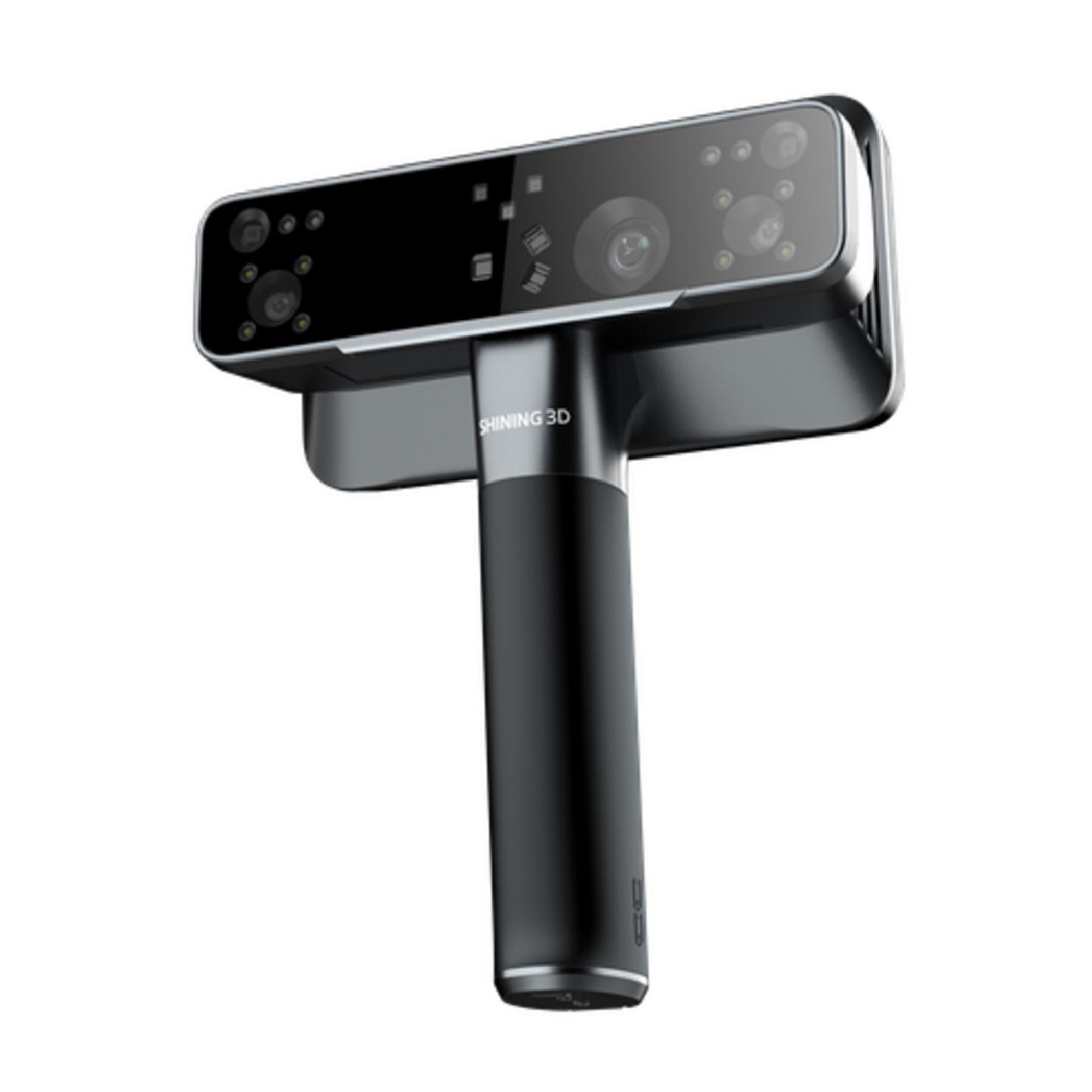

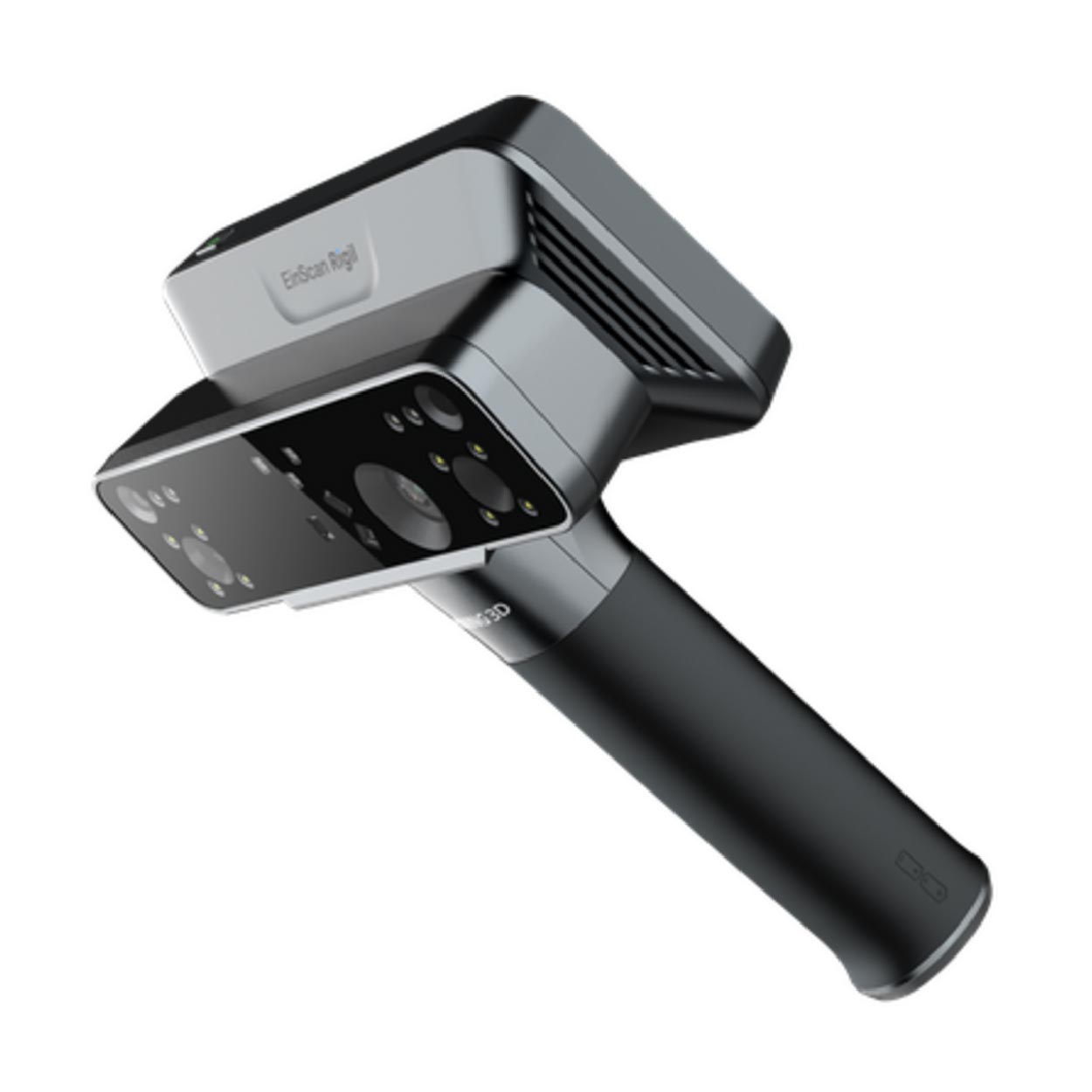

Shining 3D EinScan Rigil is a 3D scanner with tri-mode technology for uncompromising 3D scans. This features an integrated processing unit and wireless high-performance architecture. With its clever all-in-one design, Rigil offers a professional scanning solution for every tricky task – from complex geometries to shiny metal surfaces.
EinScan Rigil has been developed specifically for the automotive aftermarket – for prosumers, tuners, developers and creatives who don’t want to waste any time. You can generate high-quality 3D models at lightning speed, measure complex components or process your designs digitally. Even with difficult materials such as carbon, shiny metal or dark surfaces, the 3D scanner delivers clean results – even without spraying agents.
Three scan modes
The EinScan Rigil combines three light sources in one device, which you can combine flexibly, even during an ongoing scan:
– 19+19 crossed blue laser lines for ultra-fast scanning with impressive data density. 7 parallel blue laser lines for high-resolution detail, ideal for fine geometries (small-medium range).
– Infrared rapid VCSEL projection for marker-free scanning in large areas. Particularly easy on the eyes and efficient for portraits or reflective surfaces (medium-large range).
Tip: The clever combination of both laser modes allows you to combine speed and detail fidelity in a single scan project – without any compromises!
Full power, maximum flexibility
– Standalone mode: Wireless and without a PC. With up to 50 FPS scanning speed for maximum mobility.
– PC mode: Connected via WLAN or cable – with up to 70 FPS. Ideal for the highest level of detail and ultra-fast data processing.
Technology that thinks for itself
What makes the EinScan Rigil special? The two separate camera groups, each of which is perfectly matched to the blue laser or IR light source. So you get precise results even with complex lighting or strong sunlight, without any markers, if the object has sufficient geometry.
Technical highlights at a glance
– volumetric accuracy: 0.04 + 0.06 mm/m.
– geometric resolution: up to 0.05 mm.
– flexible light source combination (laser + IR).
– ready for use in direct sunlight.
– optimised for dark & reflective materials.
– marker-free scanning.
– 5 MP full colour texture scanning.
– with two built-in, replaceable 6000 mAh batteries.

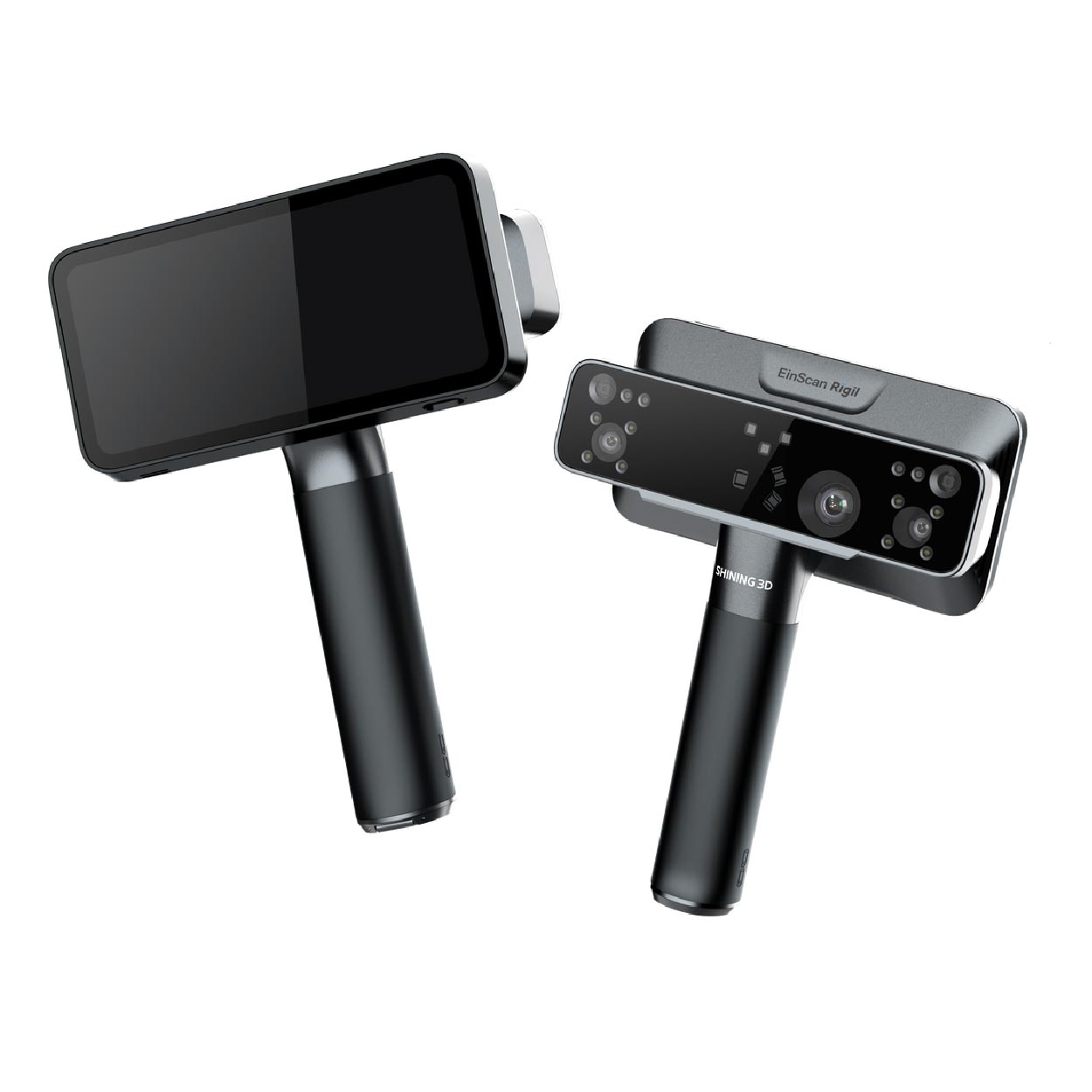

– 6.4 inch 2K AMOLED touchscreen.
Please Note: Images are for illustrative purposes only. Please review your product selection before purchase.
