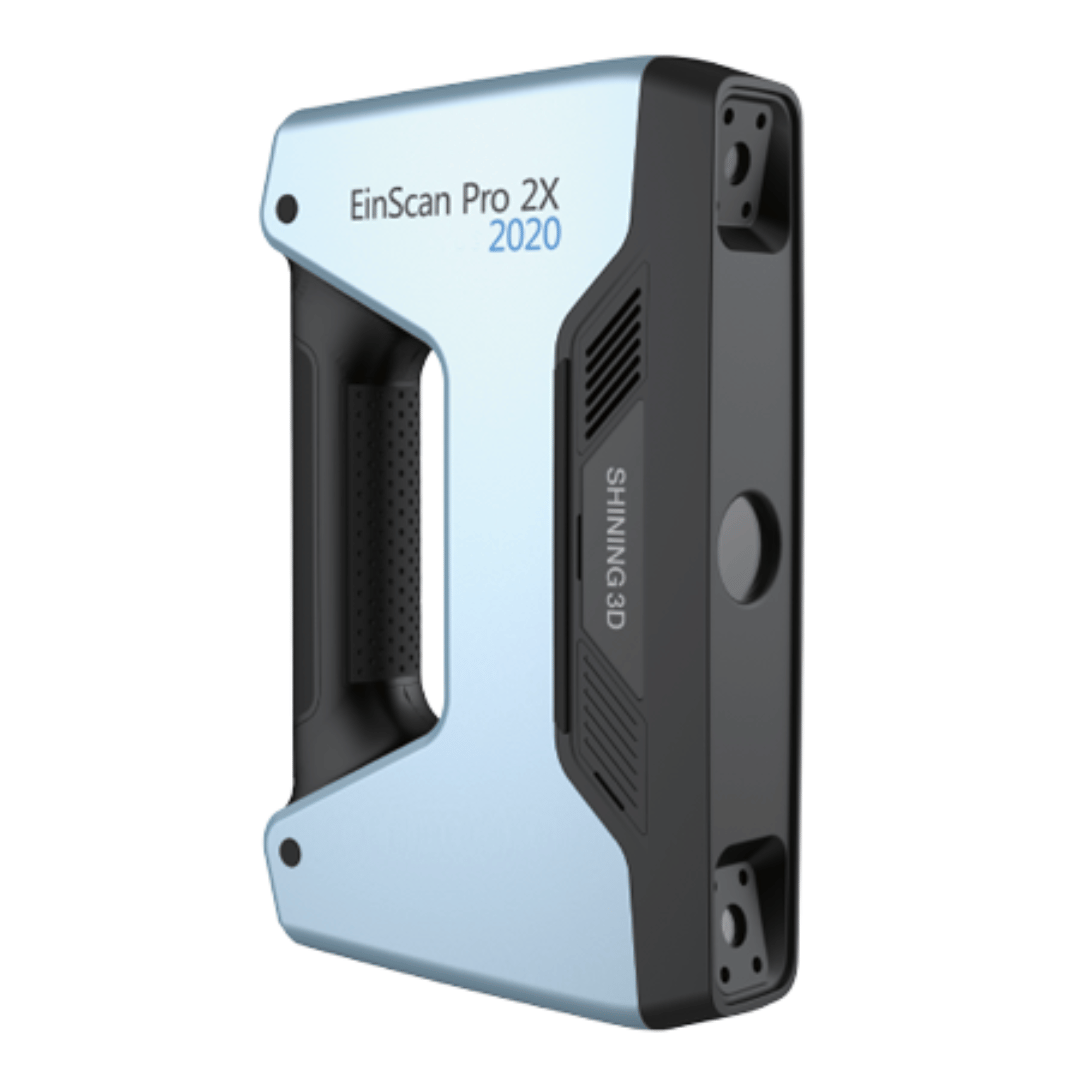

EinScan Pro 2X 2020
Improve your efficiency of high-quality 3D modelling with the EinScan Pro 2X 2020, brought to you by Shining 3D. This highly portable and versatile handheld scanner is faster and more accurate than ever before, thanks to it’s latest technology. The EinScan Pro 2X (2020) is a great option for those wanting to quickly scan small to medium sized objects, and achieve the highest quality results.[/vc_column_text][/vc_column][vc_column width=”1/2″][vc_video link=”https://youtu.be/iGb6bKsh-ek?si=sfAV0VBajAd9rQ22″][/vc_column][/vc_row][vc_row css=”.vc_custom_1711456876159{padding-bottom: 40px !important;}” conditional_render=”%5B%7B%22value_role%22%3A%22administrator%22%7D%5D”][vc_column width=”1/2″][vc_column_text]
Key Features
- Portable & User-Friendly Design – Easily take the EinScan Pro 2X 2020 anywhere with you thanks to its light-weight and compact design. Enjoy plug-and-play installation and an unlimited scanning experience.
- Fast Scanning – Its data capture hardware and optimised algorithms increase scanning speeds. Processing up to 1,500,000 points per second (30fps) under ‘Handheld Rapid Scan Mode’.
- High Accuracy – Single scan accuracy under ‘Fixed Scan Mode’ is up to 0.04mm. When using markers, the volumetric accuracy under ‘Handheld Scanning Mode’ is up to 0.045mm+0.3mm/m.
- Capture Fine Details – With a minimum point distance of up to 0.2mm under ‘Handheld Rapid Scan’ and ‘Handheld HD Scan’ modes, the scanner is capable of generating high-resolution 3D data.
- Versatile Scan & Align Modes – Supporting a number modes such as: Handheld Rapid Scan, Handheld HD Scan, Foxed Scan without Turntable, and Fixed Scan with Turntable. As well as multiple alignment modes including: feature alignment, marker alignment, texture alignment, turntable coded targets alignment, and manual alignment.
- Modular Design – The colour pack and industrial pack come as optional add-ons for the EinScan Pro 2X 2020 for various scanning experiences and applications.
Applications
- Manufacturing and reverse engineering
- 3D modelling for customised product and service via 3D printing
- Art and heritage
- Design
- Healthcare
- Research and education
- Virtual display
Industrial Pack
With inclusions of Tripod and Turntable, the ‘Industrial Pack’ enables Fixed Scan to achieve high accuracy and details of scanned 3D data, allowing turntable alignment and coded target alignment.
Fixed Scan with Turntable: For completing a 360-degree automatic scan in few minutes. Recommended for small objects, such as industrial components, ornaments and small artistic pieces.
Fixed Scan without Turntable: For scanning medium objects. It’s ideal for capturing high-accuracy data and rich details.[/vc_column_text][vc_single_image image=”29149″ img_size=”medium” label=””][/vc_column][vc_column width=”1/2″][vc_column_text]
Colour Pack
By attaching the ‘Colour Pack’, the EinScan-Pro series can capture full-colour texture, and enables texture alignment for more possibilities of scanning.
Colour Pack activates texture tracking in handheld Rapid Mode to align scans without using markers.[/vc_column_text][vc_single_image image=”29150″ img_size=”medium” label=””][/vc_column][/vc_row]
