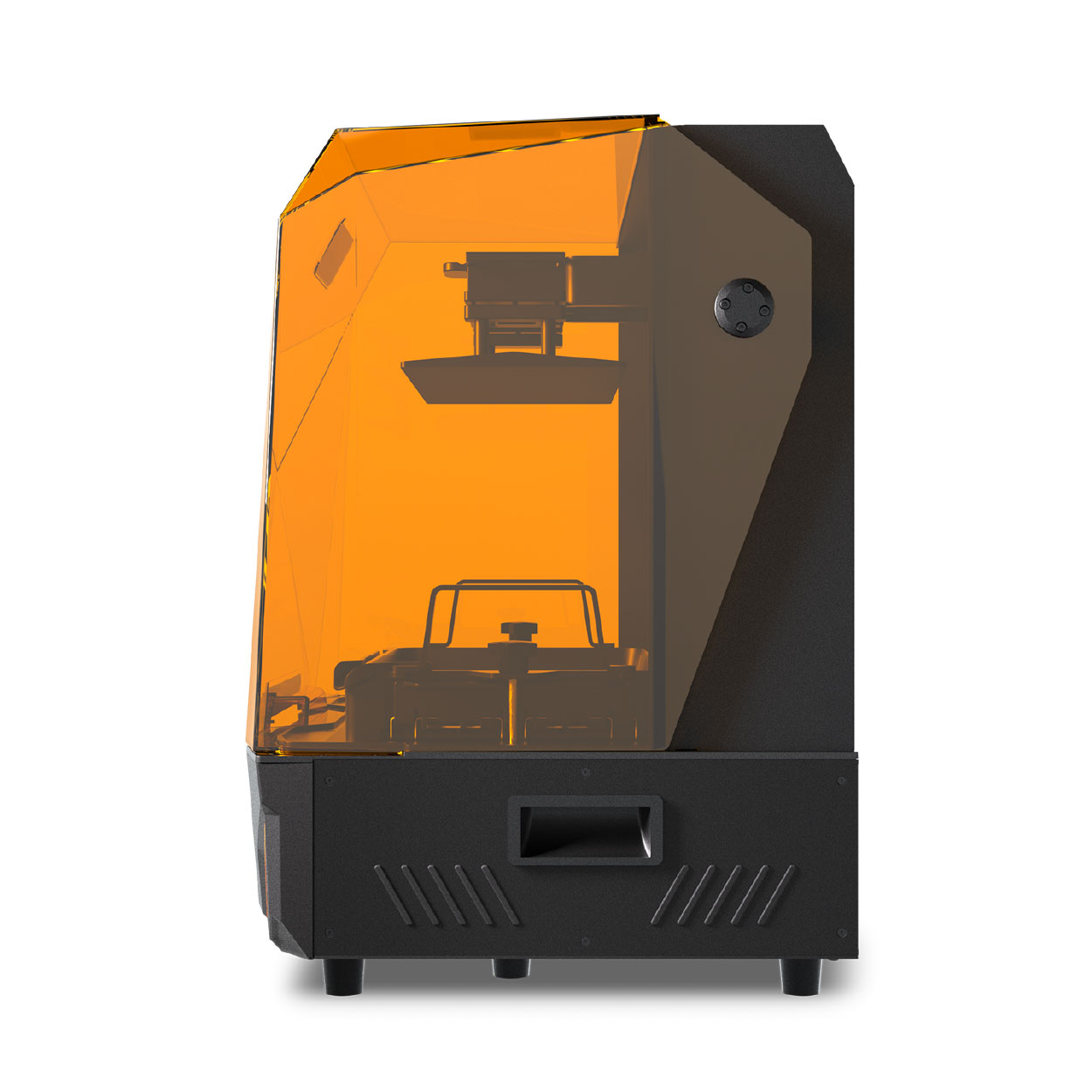

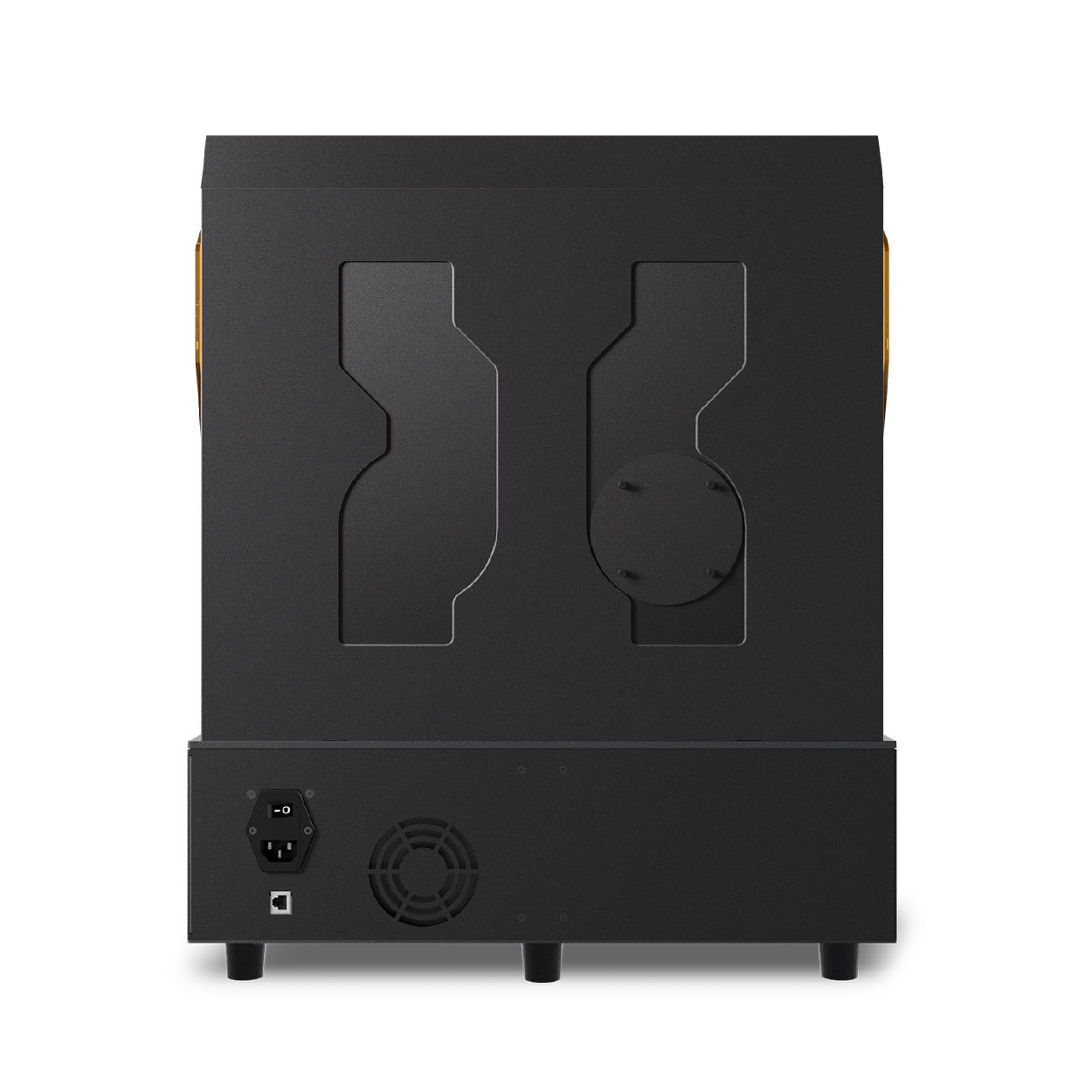

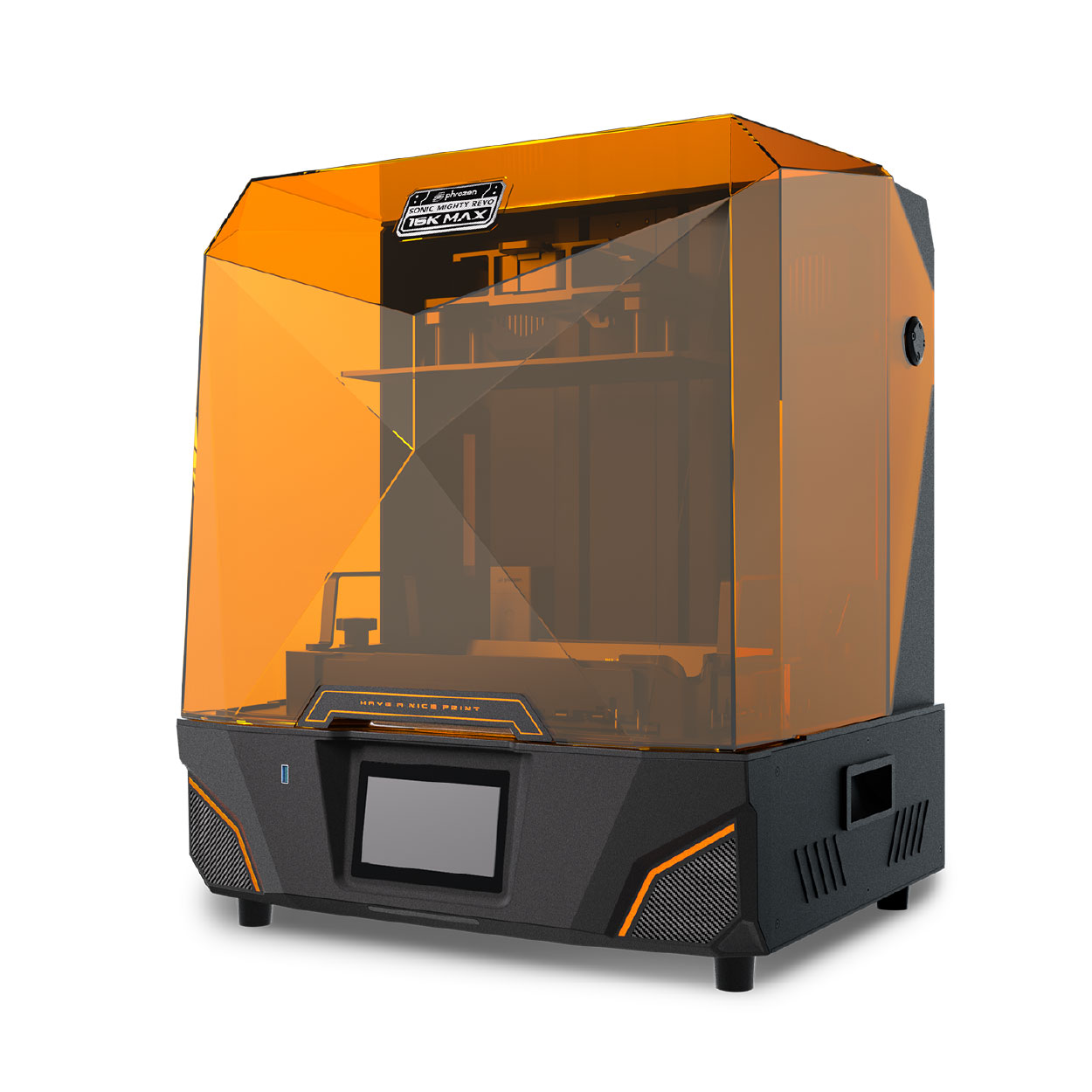

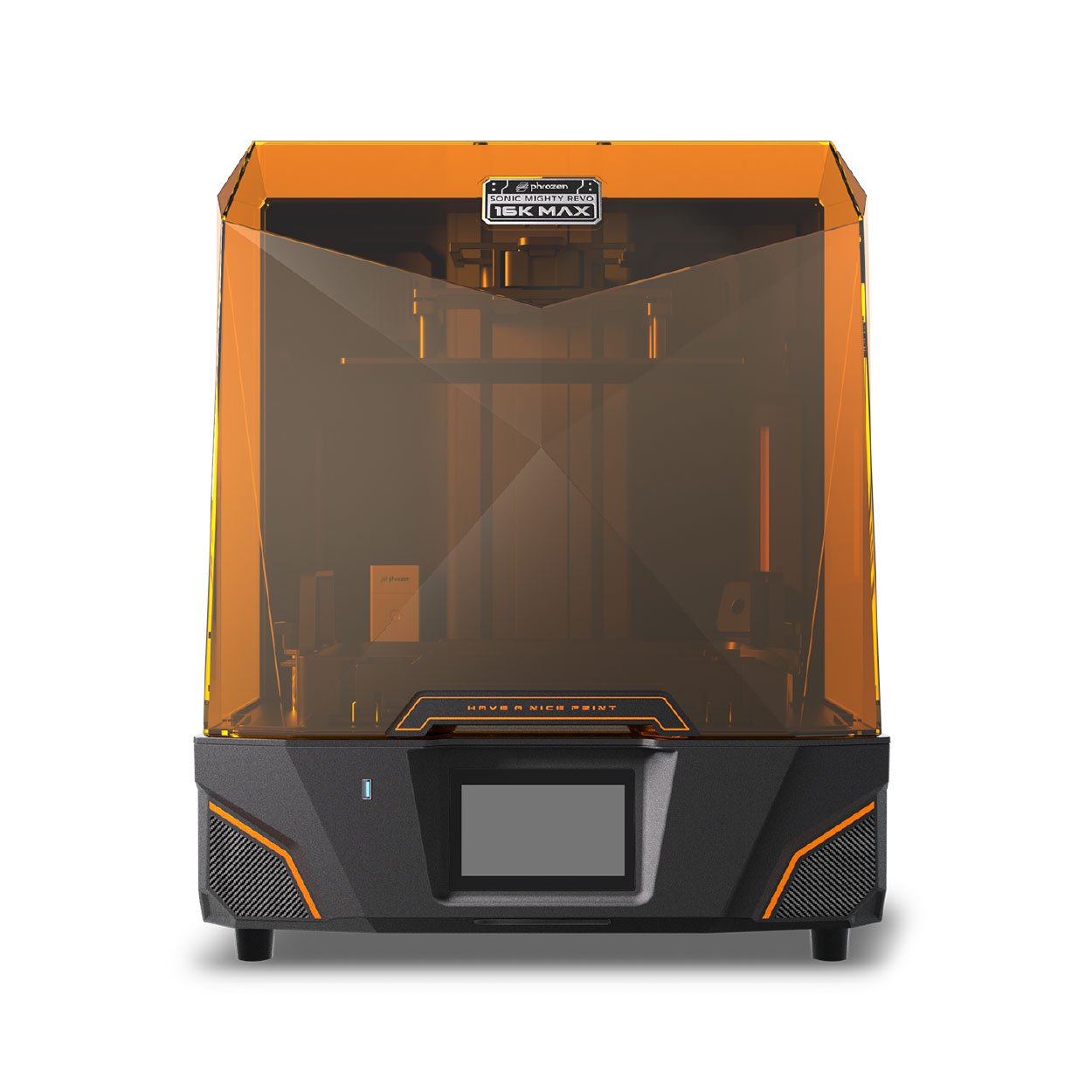

Print big without the hassle, introducing the Sonic Mighty Revo 16K MAX 3D Printer. A 14″ LCD paired with a 302.4 × 161.98 × 300 mm build volume fits more parts per print, so large models need less splitting. Fewer print runs, fewer pieces to match, and less assembly work, giving creators, studios, and print service providers a faster path to finished pieces.
16K High-Definition, Every Detail Preserved
The Revo MAX’s 16K resolution (15104 × 6230) captures ultra-fine detail, with anti-aliasing smoothing curves and edges, and supports single print files up to 10GB for large-scale projects. From textures to figurines and jewelry engravings, results stay sharp for miniature sculptors and jewelry designers.
Steadier Temperature, Steadier Prints
Cold rooms and high-viscosity resins need steady temperature control. Revo MAX combines dual-heat chamber with an optional heated resin vat to regulate temperature, while smart detection catches drops for reliable prints.
Print Longer, Swap Faster
What slows your workflow down usually isn’t print time, it’s the constant refills and material swaps. Revo MAX solves both with a bigger resin vat and quick-release film.
Quick-Release Film, 3-Minute Swap
Traditional film swaps can take up to 30 minutes, aligning holes and screwing them in. Revo MAX’s quick-release design on all four sides gets it done in 3 minutes instead. Less maintenance, more printing.
2L Vat, Fewer Refills
The 2L resin vat holds approximately 2.5 bottles in a single fill, so long or overnight prints need less refilling. No resin-feeder, no extra pumps or tubing, just a simpler setup.
Build Plate Handling, Simplified.
An all-metal build plate, upgraded for easier removal, drainage, and cleanup, for simpler and smoother handling.
Sloped Design, Faster Cleanup
The sloped surface helps resin flow back during printing, leaving less resin on top of the build plate afterward. The build plate also fits directly into the Mega Wash S for fast, automated cleaning.
Snap-Lock and Large Handles
The snap-lock latch means no unscrewing when removing or reinstalling the build plate. Large handles on both sides keep the plate steady and secure in hand.
Hang and Drain
The build plate hangs directly inside the machine to drain. Resin drips back into the vat, while the lid can still close normally.
Fewer Surprises, More Uptime
From hardware safeguards to system alerts, Revo MAX catches common print risks at every layer.
Triple Hardware Protection
A Z-axis guard, tempered glass over the LCD, and a raised base help block resin spills and keep them from seeping into the machine.
Power-Loss Recovery
If there is a sudden power loss, you will get an alert. Once power returns, printing resumes from where it left off, reducing the risk of reprinting.
Real-Time Alerts
Get alerts for print failures and temperature drops, with tracking for Z-axis maintenance, LCD, and release film lifetime, keeping you informed.
No More Second-Guessing on Settings
Leveling, guided setup, and exposure testing are all built into the screen, so even first-time users can get it right the first time.
Pressure-Sensing Leveling
Pressure and color indicators mark all four corners, precise adjustments made simple.
1080p Vertical Camera, No Blind Spots
Horizontal, low-quality cameras blur the view, leaving blind spots hiding failures. Revo MAX’s 1080p vertical camera keeps detail sharp, letting you check long or overnight prints from anywhere without walking to the printer.
AI Color Correction with Zero-UV LED
Snapshots and time-lapse footage can look dim and color-shifted. Zero-UV LEDs light the chamber evenly without affecting curing, and AI color correction fixes color shift so footage matches the model’s true color.
Key Characteristics
- Printing Volume: W 302.4 × D 161.98 × H 300 mm
- Printing Speed: Avg. 450 layers/hr
- XY Resolution: 20 × 26 μm
- Layer Thickness: 0.01–0.2 mm
- Technology: LCD
- Light Source: 405nm ParaLED® Matrix 3.0
- LCD Specification: 14″ 16K Mono LCD (15104 x 6230 pixels)
- System: Phrozen OS
- Operation: 5″ Touch Panel
- Slicer Software: CHITUBOX | Lychee Slicer
Please Note: Images are for illustrative purposes only. Please review your product selection before purchase.
