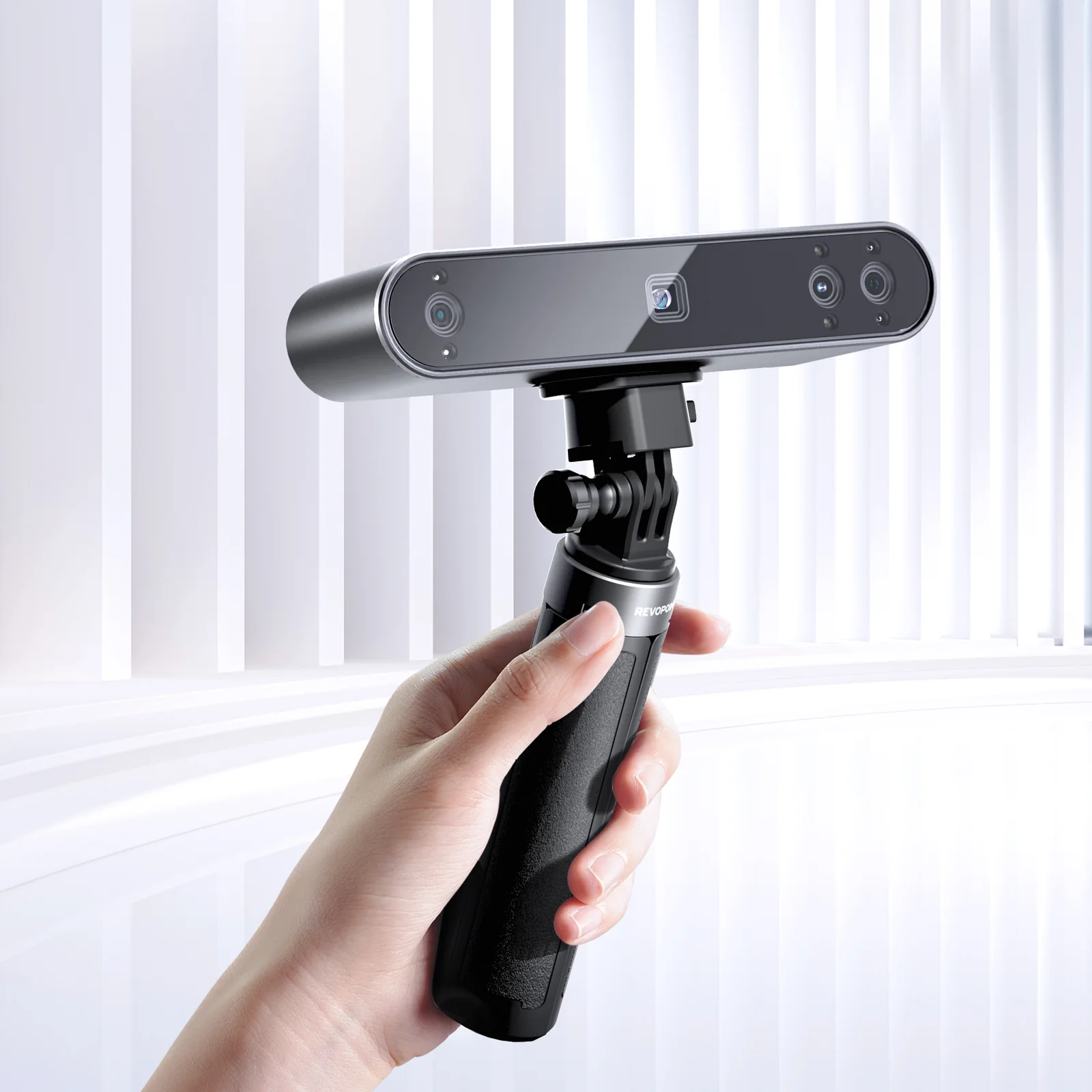

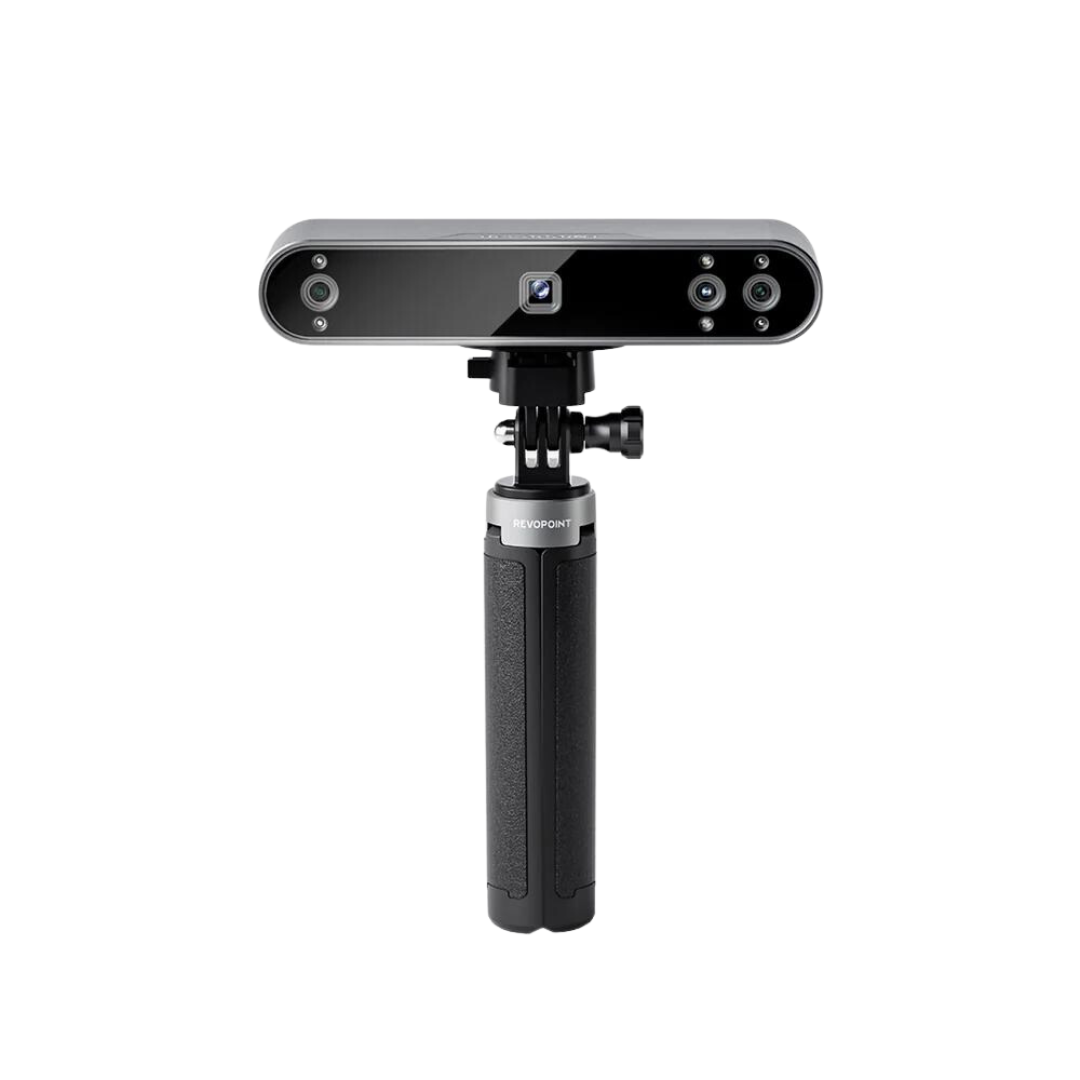

Revopoint POP 3 3D Scanner Advanced Edition

RevoPoint POP 3 is the next-gen 3D scanner from the POP series with new and improved hardware, design, and usability. The improvements in POP 3’s capabilities make capturing 3D scans for 3D printing even easier. Perfect for 3D animation, reverse engineering, healthcare, product design, digitising historical items, VR/AR, and more. Revopoint’s Advanced Edition comes packaged with the Dual-Axis Turntable.[/vc_column_text][/vc_column][/vc_row][vc_row css=”.vc_custom_1698317225899{padding-bottom: 40px !important;}” conditional_render=”%5B%7B%22value_role%22%3A%22administrator%22%7D%5D”][vc_column width=”1/2″][vc_column_text]

Enhanced Marker Tracker

Capture scans using marker points faster and more reliably with dual infrared LEDs mounted next to both depth cameras providing extra light for better marker point tracking.[/vc_column_text][vc_column_text]

Intelligent Scanning

Enjoy seamless tracking and frame stitching with POP 3’s 9-axis IMU (Inertial Measurement Unit). It continuously measures the scanner’s movement and helps to eliminate faulty frames caused by fast movement or shaking.[/vc_column_text][/vc_column][vc_column width=”1/2″][vc_video link=”https://youtu.be/IQ7NU5g6oKk”][/vc_column][/vc_row][vc_row css=”.vc_custom_1698317233131{padding-bottom: 40px !important;}” conditional_render=”%5B%7B%22value_role%22%3A%22administrator%22%7D%5D”][vc_column][vc_column_text]

[/vc_column_text][vc_column_text]

Better Colour Accuracy

Get improved colour and texture accuracy through the RGB camera’s bigger aperture. Capturing more light and dual white LEDs providing supporting illumination to eliminate shadows and make the colours vibrant.[/vc_column_text][/vc_column][/vc_row][vc_row css=”.vc_custom_1698317239966{padding-bottom: 40px !important;}” conditional_render=”%5B%7B%22value_role%22%3A%22administrator%22%7D%5D”][vc_column width=”1/2″][vc_single_image image=”25006″ img_size=”full”][/vc_column][vc_column width=”1/2″][vc_single_image image=”25004″ img_size=”full”][/vc_column][/vc_row][vc_row][vc_column width=”1/2″][vc_column_text]

Scanner Specification

Technology – Biocular Dual Camera Infrared Light

Single Frame Precision – Up to 0.05mm

Single Capture Range – 125 × 225 mm

Working Distance – 150 – 400 mm

Minimum Scan Volume – 20 x 20 x 20mm

Scanning Speed – 12 – 18 fps

Light Source – Class 1 infrared light

Alignment – Feature, Marker

Buttons – Three touch buttons

Output Format – PLY, OBJ, STL

Special Object Scanning – Use scanning spray for transparent, dark, or highly reflective objects

Scanning Environment – Indoors and Outdoors

Scanner Weight – 190g

Dimensions – 153 × 45 × 29 mm

Required Computer Configurations – Windows, Android, iOS, macOS

Wi-Fi – 6.0

Connector Type – USB Type-C to USB 3.0 Type-A

Inertial Measurement Unit (IMU) – 9-axis

[/vc_column_text][/vc_column][vc_column width=”1/2″][vc_column_text]

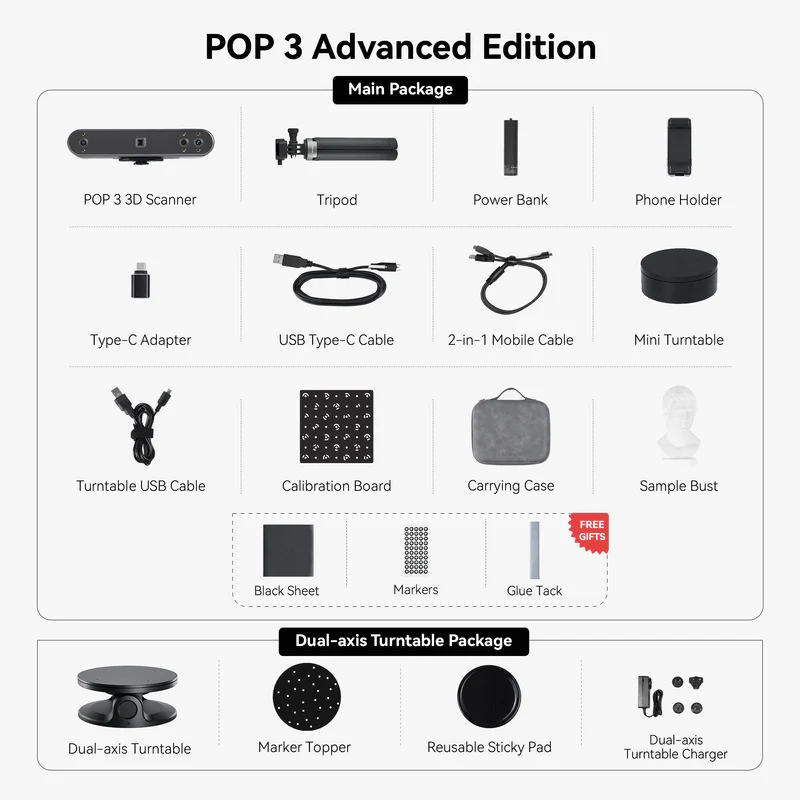

Package Inclusions

• Pop 3 3D Scanner
• Tripod
• Calibration Board
• Phone Holder
• Mini Turntable
• Maker Topper
• Carrying Case
• Turntable USB Cable
• 2-in-1 Mobile Cable
• Type C Adaptor
• USB Cable (Type A)
• Sample Sculpture
• Markers
• Blu-Tack
• Warranty Card & Inspect Certificate
• Plastic Sheet
• Dual-Axis Turntable package – Turntable, Marker Topper, Reusable Sticky Pad and, Turntable Charger
