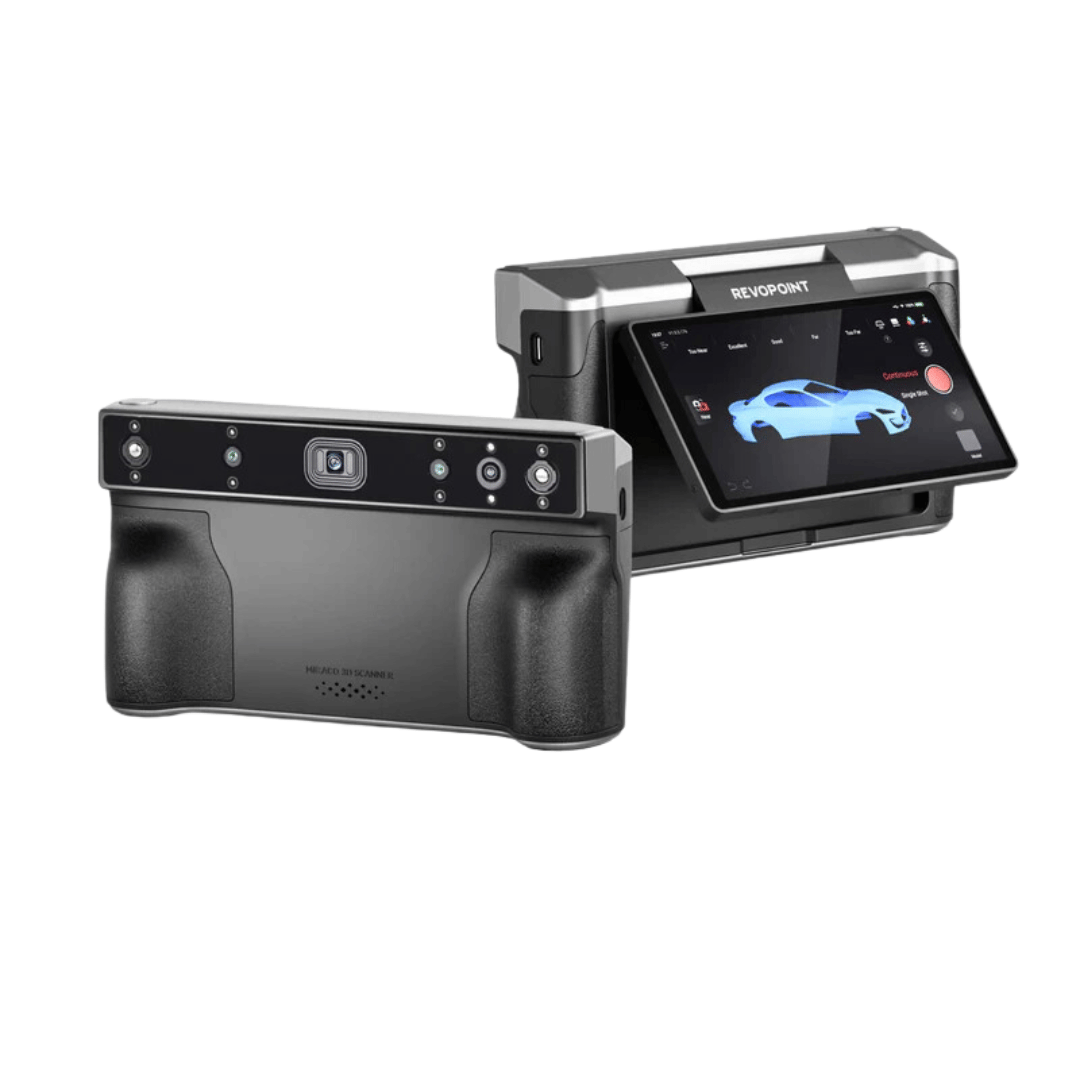

RevoPoint Miraco Plus 3D Scanner

The RevoPoint Miraco Plus is a cost-effective, all-in-one 3D scanner with photogrammetric metrology capabilities. With its Photogrammetric Metrology Kit and improved accuracy and speed, the Miraco Plus expands the Red Dot award-winning Miraco series with metrology-grade large-object capturing capabilities.

Key Features

• Photogrammetric metrology length accuracy of 0.02 mm + 0.05 mm x L (m)
• Capture finer details with its infrared optical zoom
• 8K colour capture with it’s 48 megapixel RGB camera
• Single-shot and continuous capture modes
• 20% more accuracy with a single-frame accuracy of 0.04mm
• 180 degree 2K amoled adjustable screen
• 9-axis IMU stabilised scanning

Metrology-Grade Large Object Capture
Achieve metrology-grade measurements of large objects like automobiles, ship or plane parts, and machinery with the highly accurate Photogrammetric Metrology Kit (PMK).
Get the best of both worlds by combining Miraco Plus’s accurate point clouds with the PMK to achieve high-resolution capture of small details on large objects while ensuring high volumetric accuracy.
Better Accuracy
The Miraco Plus now boasts 20% greater accuracy for capturing finer details, guaranteed within 20 microns by its high-precision calibration board.
Capture Richer Details
Capture more surface detail with Miraco Plus’s 1.5x and 2x optical zoom. It focuses the infrared light helping to remove noise and increase the smoothness of the details captured.

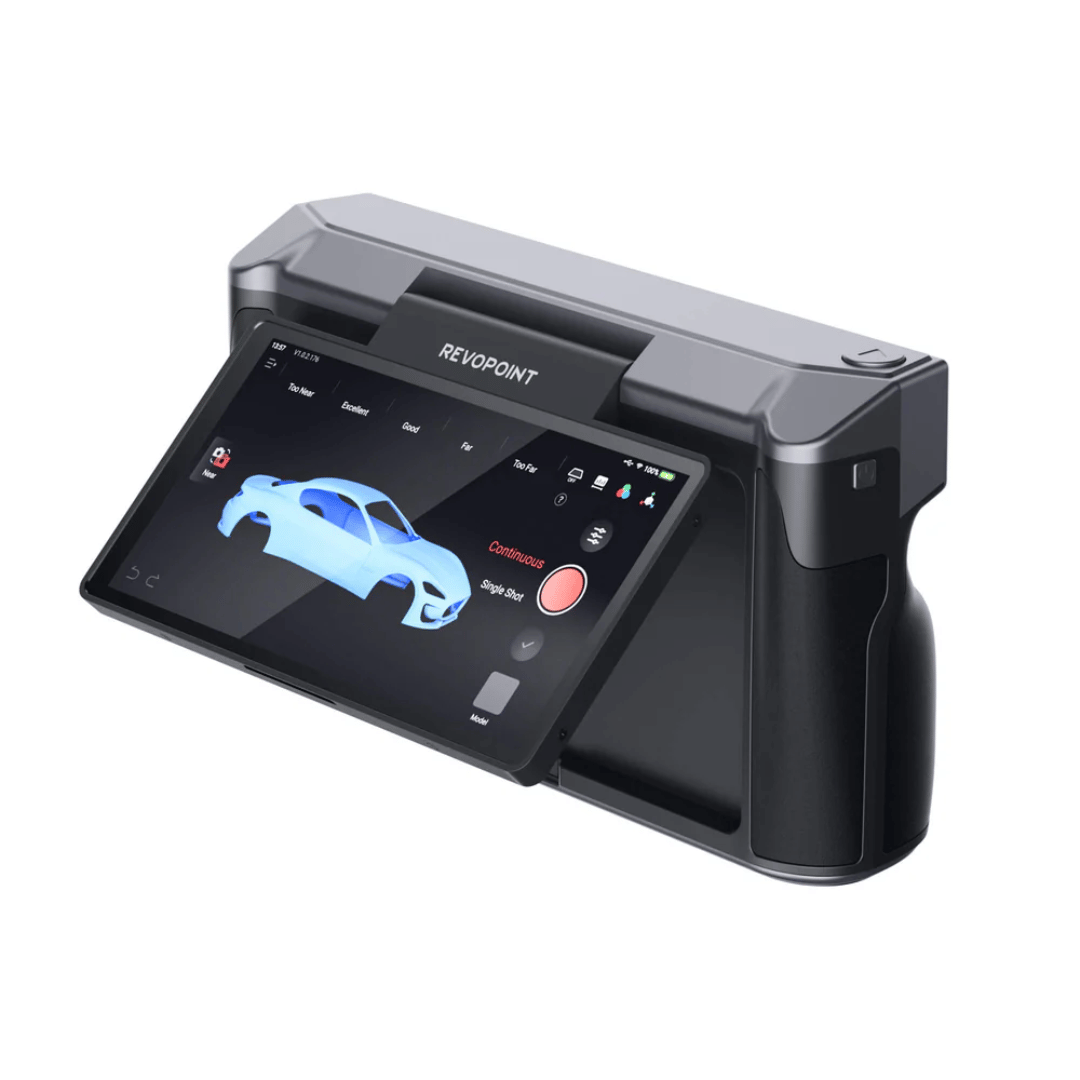

Your Scanning Portal
See your scans with crystal clarity on Miraco’s 6” 2k backlit AMOLED touch-sensitive screen. Its 180° adjustable screen allows easy viewing from any angle and can flipped for selfie scans.
Two Capture Modes

Single Shot Mode

• Single-shot mode’s single-frame capture makes it easier to progressively scan in hard-to-manoeuvre environments.

Continuous Mode

• Create 3D models fast at up to 20 fps scanning speeds for both small or big objects.

Eye Popping Colour
Create eye-catching coloured 3D models with MIRACO Plus’s 48-megapixel RGB Camera.

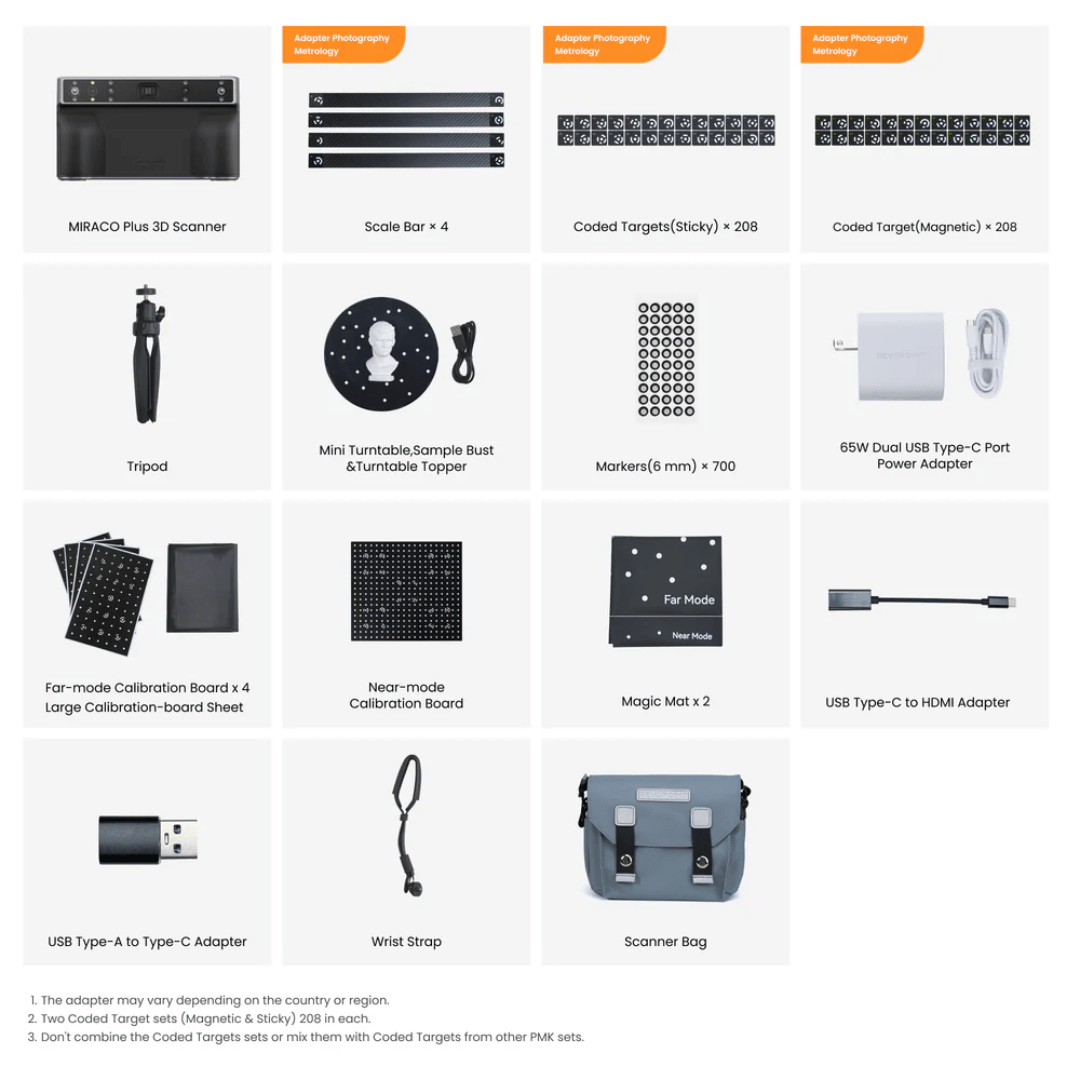

Included with the Scanner

• Miraco Plus 3D Scanner
• Scale Bar x 4
• Coded targets x 208 (sticky)
• Coded targets x 208 (magnetic)
• Tripod
• Mini turntable and sample bust
• Turntable topper
• Scanner bag
• Near-mode calibration board
• Magic mat x 2
• Wrist strap
• USB Type-C to HDMI cable
• Markers x 700
• Certification warranty
• Far-mode Calibration Board x 4, Large Calibration-board Sheet
• 65W Dual USB Type-C Port Power Adapter, USB Type-C to C Cable (1.8 m)
• USB Type-A to Type-C Adapter
