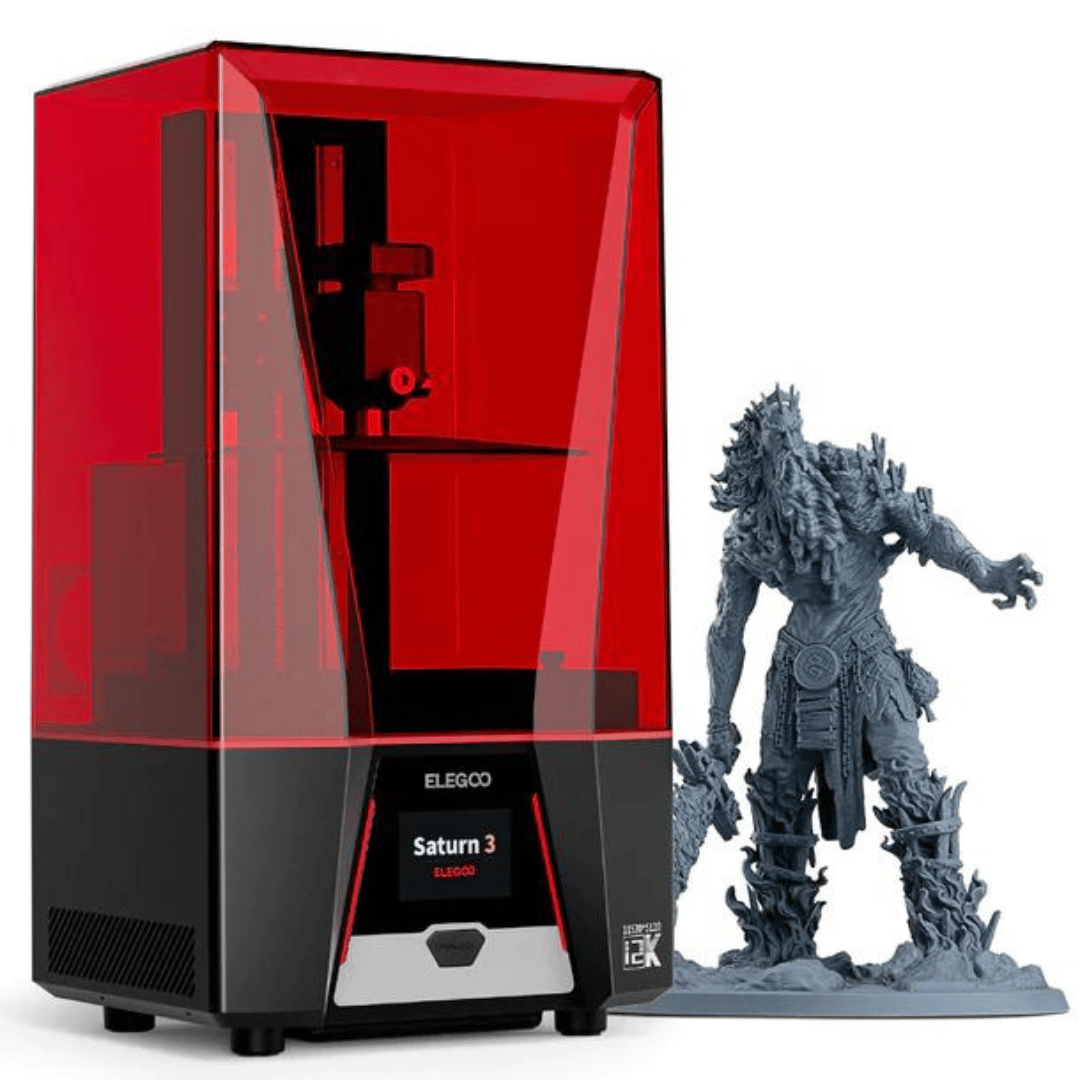

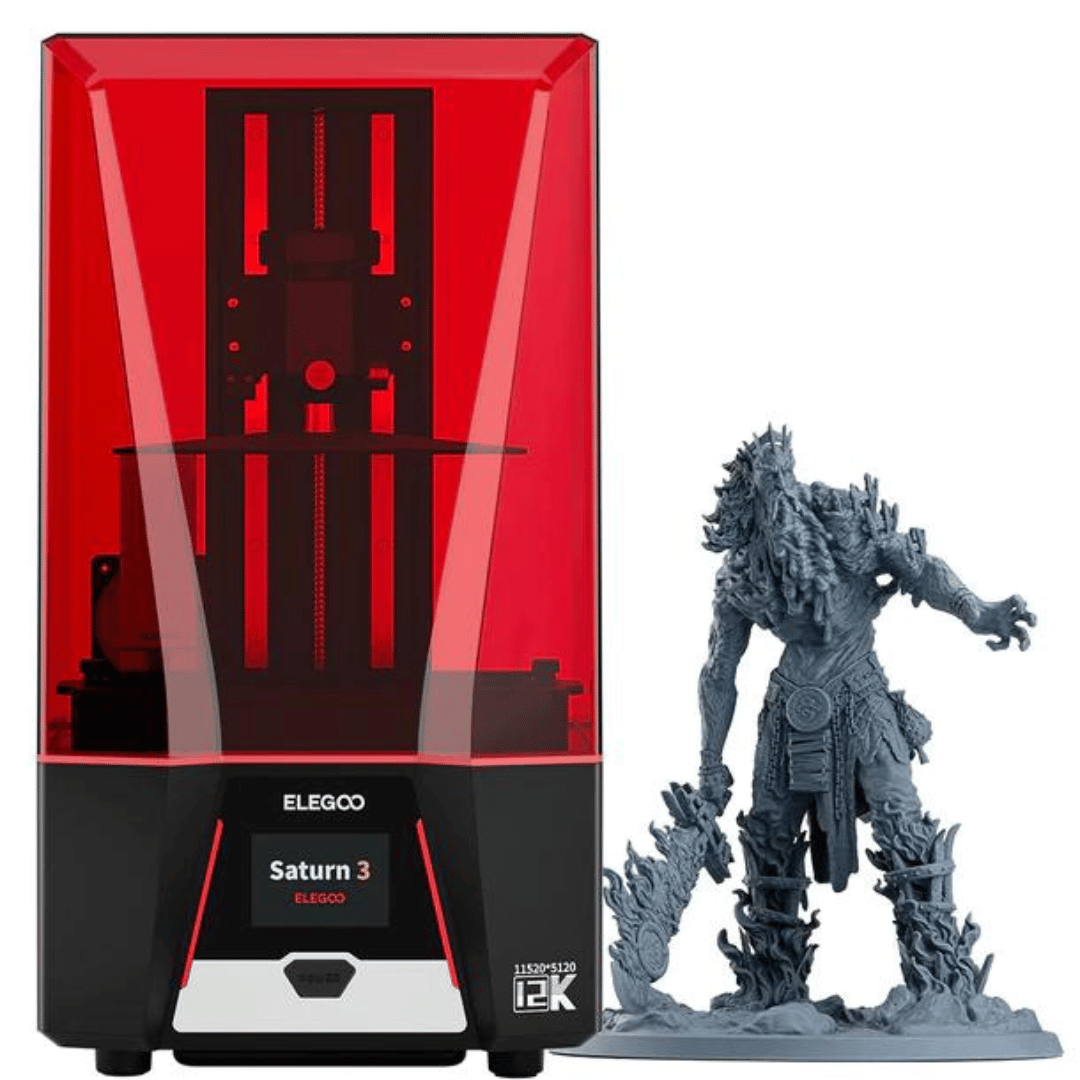

Elegoo Saturn 3 12K
The Elegoo Saturn 3 3D printer incorporates an impressive 10-inch 12K mono LCD, boasting a remarkable resolution of 11520 x 5120, and an XY resolution of 19 x 24 microns. This advanced technology enables the creation of intricate models with superb details and exceptional sharpness. The replaceable 9H tempered glass also provides effective protection against scratches and damage to the LCD screen, extending its lifespan. All of this combined makes the ELEGOO Saturn 3 12K the ideal choice for beginners and professionals alike.
COB + Fresnel Collimating Lens
The combination of a COB light source and Fresnel collimating lens guarantees a more uniform and perpendicular exposure across the screen, within a 5-degree light angle and 0.5% light-scattering coefficient. Achieving 90% light uniformity, this setup enables the creation of remarkably detailed models with smooth surfaces and crisp edges.
Upgraded Heat Dissipation System
The enhanced heat dissipation system now features 6 double heat-conducting copper tubes and 4 cooling fans positioned on both sides of the light source, promoting swifter ventilation and improved heat dissipation. This optimisation guarantees peak performance of your printer while also extending its lifespan.
High Stable Structure
The dual linear guide rail configuration guarantees quieter, more stable, and precise Z-axis movement, minimizing ridges on finished prints.
With its laser-carved build plate boasting exceptional adhesion, your prints adhere securely even during the printing of large models.
Featuring non-slip hexagon socket levelling screws, the printer ensures effortless levelling, facilitating quick and easy adjustments.
The mid-plate of the printer is engineered with a raised step to prevent resin from seeping into the machine, thereby safeguarding its components and maintaining cleanliness.
Multiple Printing Modes
The Voxeldance Tango software enhances printing efficiency by providing both static and dynamic printing modes, including smooth and high-speed modes. Additionally, with the open-source GOO slice file format, users can leverage third-party slicing software like CHITUBOX and Lychee Slicer, offering increased flexibility and convenience.
Odour-Free Printing Environment
Ensuring your printing safety is top priority, ELEGOO have incorporated an enhanced USB-powered air purifier. Encased in durable plastic, it effectively shields the built-in activated carbon filter from damage during transportation.
ELEGOO Saturn 3 12K Specs
- LCD – 10 inch 12K Mono LCD
- System – EL3D-3.0.1
- Slicer Software – CHITUBOX & Voxeldance Tango
- Technology – MSLA Stereolithography
- Layer Thickness – 0.01-0.2mm
- Printing Speed – MAX 70mm/h
- Z-Axis Accuracy – 0.02mm
- XY Resolution – 19×24μm(11520×5120)
- Build Volume – 218.88mm(L)*122.88mm(W)*250mm(H)
- Light Source – COB (wavelength 405nm)
- Languages – Chinese, English
- Connectivity – USB Interface
- Weight – 15.2kg
- Operation – 3.5-inch Touch Screen
- Power Requirements – 100-240V 50/60Hz 24V 4A
- Printer Dimensions – 305.9mm(L)*273mm(W)*567.3mm(H)
